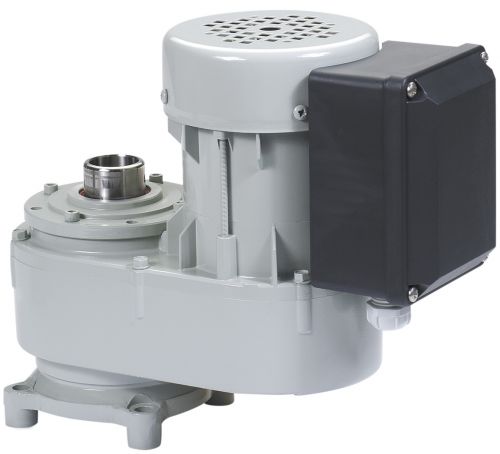

Type N asynchronous gear motor

Ref. MR_Asyn_Type N
Reversible gearbox with parallel gears

Hollow or solid shaft



Applications :

Automatics gates
Agitator
Special machines

Technical
specifications

  • Asynchronous motor
  • Greased lubricated
  • Solid or hollow shaft
  • Thermal cut out
  • 2 direction of rotation
  • Class B insulation
  • IP44 protection
  • S1 service class
  • Working Temperature : -20°C to +85°C

Available
options

  • Inrush or lack of current brake (24Vor 230V with diode rectifier) with or without manual unlocking
  • Voltages and frequencies on request
  • Reinforced motor for more torque
  • Torque motor
  • Class F insulation
  • IP55 protection
  • Output shaft according to specifications

Standards-compliant

  • EN 60335-1
  • EN 60034-1
