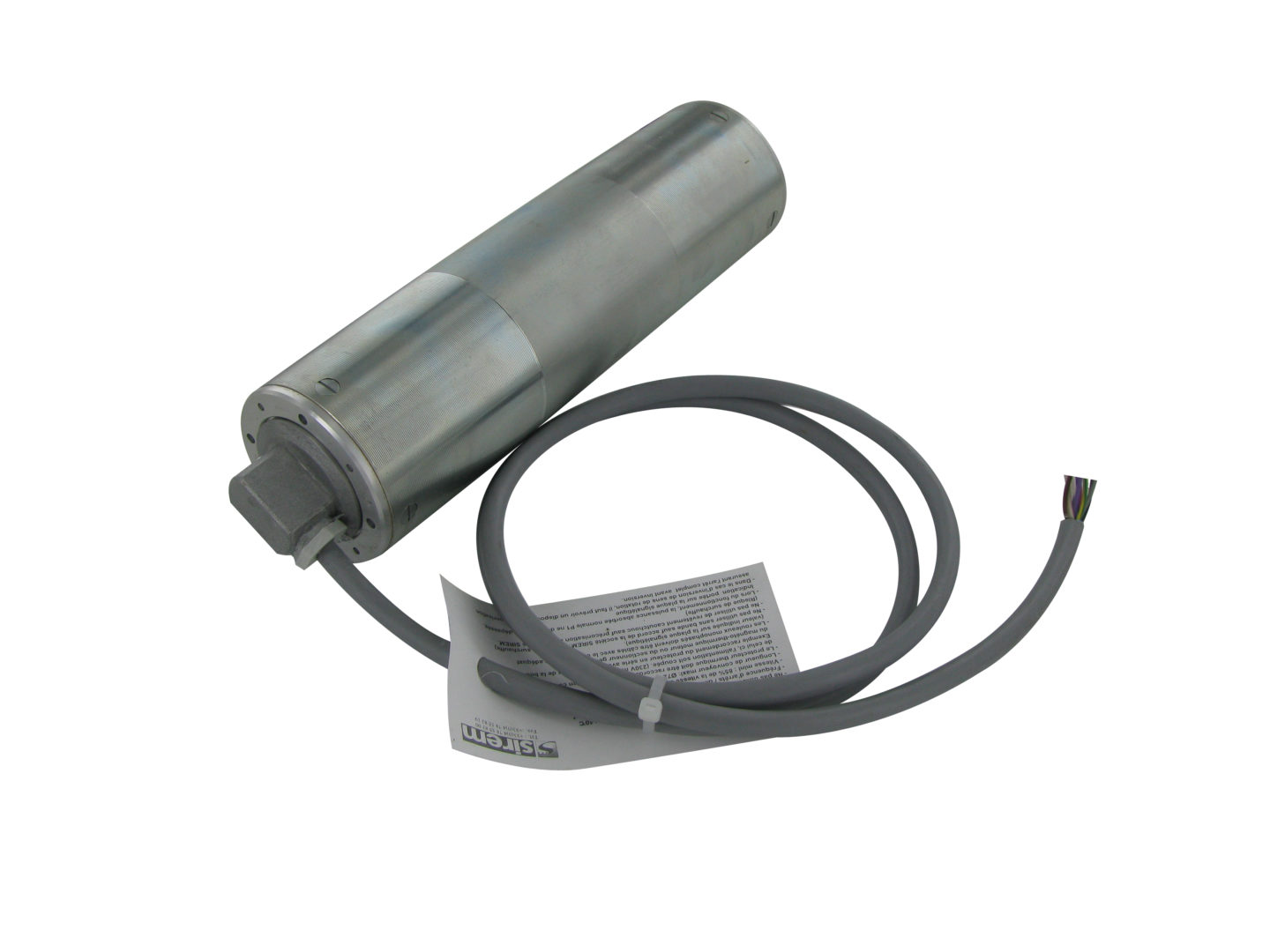

MOTORIZED DRUM Ø72 HIGH INDUSTRY

Ref. TM_72_High
HIGH INDUSTRY VERSION : STEEL GEARBOX, ALUMINIUM FLANGES
MAXIMUM LOAD UNTIL 137 KG
3 TYPES OF MOTORIZATION : STANDARD, COLD, REINFORCED
SINGLE AND THREE PHASE MOTORS

Technical
specifications

  • Asynchronous motor
  • Permanently lubricated
  • Thermal cut-out
  • Aluminium end fitting
  • Steel tube
  • Working with frequency convertor from 0 to 75Hz under 230V only
  • Class F insulation
  • IP66 protection
  • S3 or S1 service class
  • Working temperature : -10°C to +40°C

Available
options

  • Stainless steel or zinc plated tube
  • Specific coating
  • Geometry of tube : cylindric, biconic, bi-tapered
  • Drum length
  • Cable length
  • Voltages and frequencies on request
  • Brake
  • Specific connectors and end fittings
  • Absorbing spacers

Standards-compliant

  • EN 60335-1
  • EN 60034-1
